Product Overview

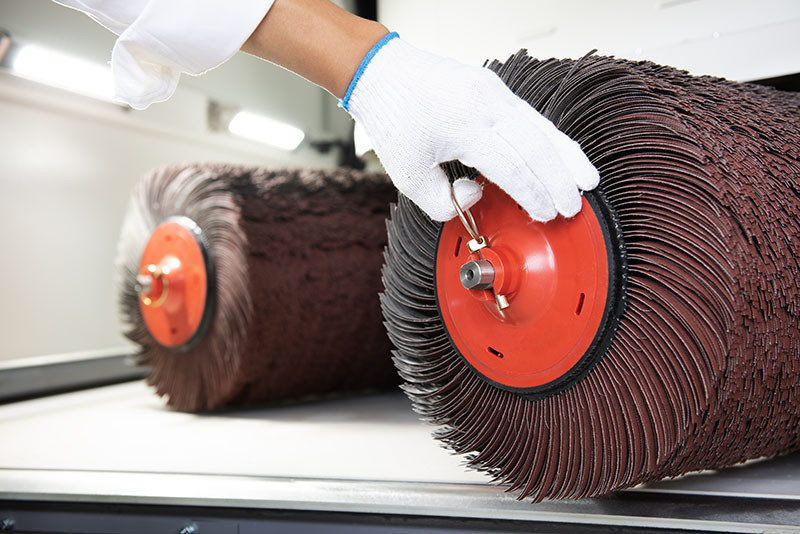

It is equipped with one sanding unit and one chamfering unit, featuring a clear division of labor and strong practicality. The sanding unit can efficiently address dross, slag and large burrs on metal workpieces after laser cutting. The chamfering unit, composed of eight flap wheel brushes, is capable of achieving perfect filleting. This model meets the precision processing requirements for workpiece surfaces and edges in metal processing.
Highlights
The processing result is clean and uniform, enabling direct connection to subsequent processes such as bending, spraying and welding.
Dual requirements can be fulfilled in one pass, significantly reducing manual intervention and helping improve overall production efficiency.
With a practical structural design, it can stably handle the processing of various metal materials including carbon steel and stainless steel.
Convenient maintenance provides guarantee for continuous production.
Videos
Specification
Deburring and chamfering. Each unit can be individually controlled to adapt different working conditions.
8-head brushes imported from Germany, one-pass processing achieves uniform and efficient chamfering.
CNC industrial computer control, endowing digital capabilities and intelligent control of each sanding unit.
15 inch intelligent touch screen:
1.One-click parameter switching;
2. Fault alarm.
3. Advance warning of consumable
Hand Cranked Pulse Generator:
Adjust the thickness unit to 0.01mm by adjusting magnifications.
Air pressure protection device - AirTAC , prevent grinding defects caused by too low air pressure and damage to the equipment.
100% rubber conveyor belt imported from Italy, high-temperature resistance and wear resistance.
Vacuum table, Yes
The lifting system adopts an internal ball screw, ensuring stable and high precision lifting.
Brush roller for conveyor belt cleaning:
maintaining the friction coefficient of the conveyor belt.
Photoelectric switch - Pepperl+Fuchs from Germany: strong penetrating power & adjustable light intensity.
Transfer System:
Transmission belt - German OPTIBELT. The pulley installation adopts a cone sleeve tensioning structure.
All working heads and the lifting adopt servo motors. Adjust power output in real-time , reducing energy loss by 30%.
Built with a high-end German motor.
It delivers stable and robust power even under high-load conditions.
Discharge end protection device,
prevents workpieces from flying out and protects the operator's safety.
