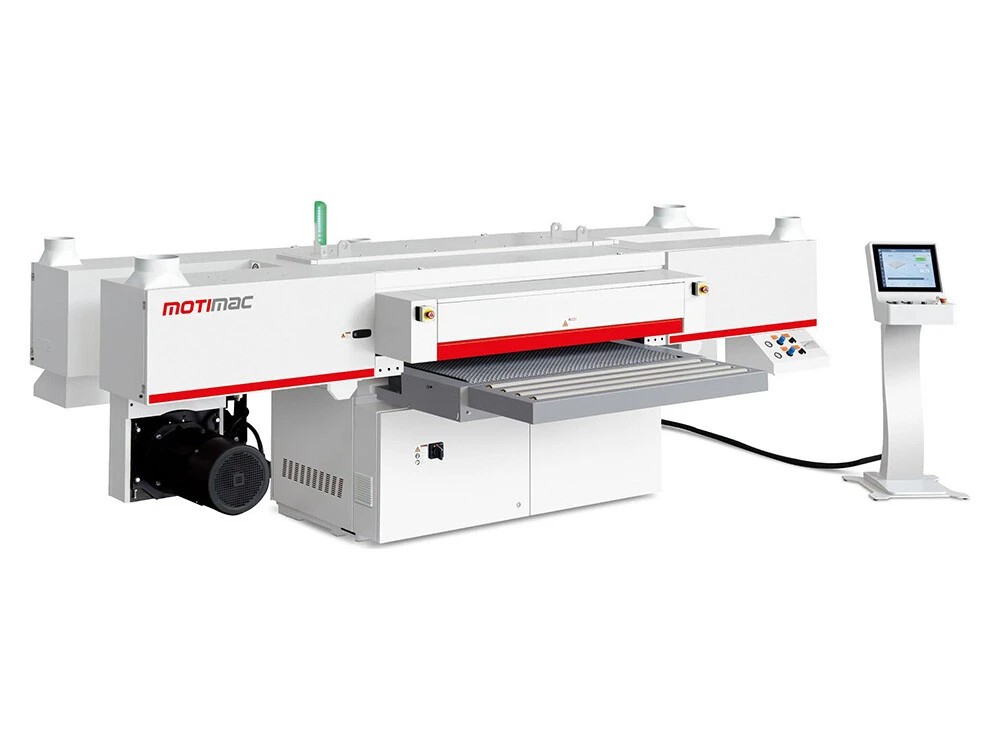

WT TT1300

WT TT1300

80-section electronic sanding system
The smaller single-section width allows the sections to better fit the board surface. Whether it is a flat board or with a certain curvature or warping, it fully contact the sanding surface to ensure uniform sanding and avoid partial under-sanding or over-sanding.

Reduce sanding blind area
The 16mm single-section width effectively reduces the gap between adjacent sections, making the sanding area more coherent, reducing the possibility of blind areas during the sanding process, and perform comprehensive and complete sanding treatment on the board.
Contact Us

Highlights

◆ Professional  high-gloss  paint  sanding,  extra-long  sanding  belt  length  8500mm, 80-section segmented pad, meet the needs of high-end and ultra-fine sanding.

◆ Use ultra-wide, tensile and wear-resistant rubber conveyor belt to prevent workpieces slippage and release uneven stress on the edge of the conveyor belt.

◆ The support power of belt is improved by 30% and the efficiency by 5%, which meets the EU CE standard and provides users with an efficient and safe experience.


4200

More videos

Specification

WT TT1300 (1)

WT TT1300 (2)

The 80-section segmented pad

completely solves the defects that cannot be solved by traditional sanding.



Digital intelligent scanning technology

with more than 400 scanning points, can accurately collect the cross-sectional contour of the workpiece.


WT TT1300 (3)

WT TT1300 (5)

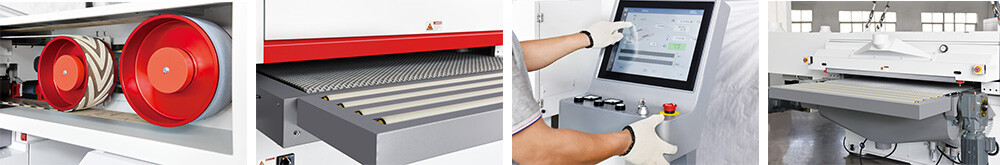

Touch screen:

 separated operation platform. Easy to move and control.

Chevron belt:

a "herringbone" belt up to 6530mm. The belt of Italian bio-polishing technology, the sanding quality can reach high gloss and skin-feeling effect.


WT TT1300 (6)


WT TT1300 (7)


Graphite

behind the chevron belt to improve the polishing

Conveyer belt

100% rubber ,imported from Italy. With vacuum.

WT TT1300 (8)

WT TT1300 (9)

Equipped with Germany FESTO solenoid valve.

Ultra-low failure rate, reducing equipment operation and maintenance costs.

SIEMENS/ABB

Low-voltage Electrical parts are adopted,

ensures enduring and steady service life.

WT TT1300 (10)


WT TT1300 (12)


Thickness protection

The front brake baffle and the non-independent suspension,

prevents too thick workpieces to enter the machine.


Lifting up

The lifting system adopts the full closed-loop positioning system,

high-precision digital display detection height,

display accuracy of 0.01mm.

WT TT1300 (13)


WT TT1300 (14)


Lifting up

The double row chain minimizes deviations of the lifting structure,

caused by stretching by the chain.

prolong the lifetime by 3 times.

Bearing

German Optibelt multi-ribbed belt.

Durable.

High transmission precision.

WT TT1300 (15)


WT TT1300 (16)


The main system is equipped with German FAG bearings as standard,

which is maintenance-free, improves the running accuracy of the sand rollers.

Four roller at the front and rear of the machine to make enough support for big panel.

WT TT1300 (17)


WT TT1300 (19)


Dust cleaning

Air blower at the output of the machine, it ensures a dust-free surface of the board, into the next procedure.


Cleaning system

prevent a dusty sanding machine and prolong the lifetime of the sanding belt, which create a better surface finish


Configuration

WT TT1300


Technical Parameters

Technical DataWT TT1300
Max working length(mm)1300
Min. working length(mm)265
Working thickness(mm)3-150
Feeding Speed(m/min)5-26
Total Power(kw)38
Belt size(mm)150×8500
Overall Dimensions(mm)4300×3200×1500
Net Weight(kg)4200


For more configuration structure information,Please send email to webmaster: webmaster@motimac.com
