WTU RRR700/WTU RR700/WTU RRC700/WTU RC700

Name: WTU RRR700/WTU RR700/WTU RRC700/WTU RC700
SKU: 0

Designed for precision woodworking, Motimac bottom sanders feature a 730mm-wide sanding belt, ideal for processing medium-sized panels, doors, and furniture components. Perfect for small to medium enterprises seeking efficiency and surface quality.
They can be connected with the upper sanders, which greatly reduces labor use and improves processing efficiency.

Highlights

◆ Flexible modular design meet customers' different sanding process requirements, and the sanding units can be freely combined.

◆ With the application of new materials and the adjustment of processes, when customers put forward new requirements, Motimac provides technical services and consultation for them, and replace the sanding unit to meet customer needs.

More videos

Specification


German FAG Maintenance-free Bearings & Integrated Hot Mounting	Press Rollers

Operating Handle	AirTac Pneumatic System

Japanese Omron Photoelectric Switch	Disc Brakes

Configuration

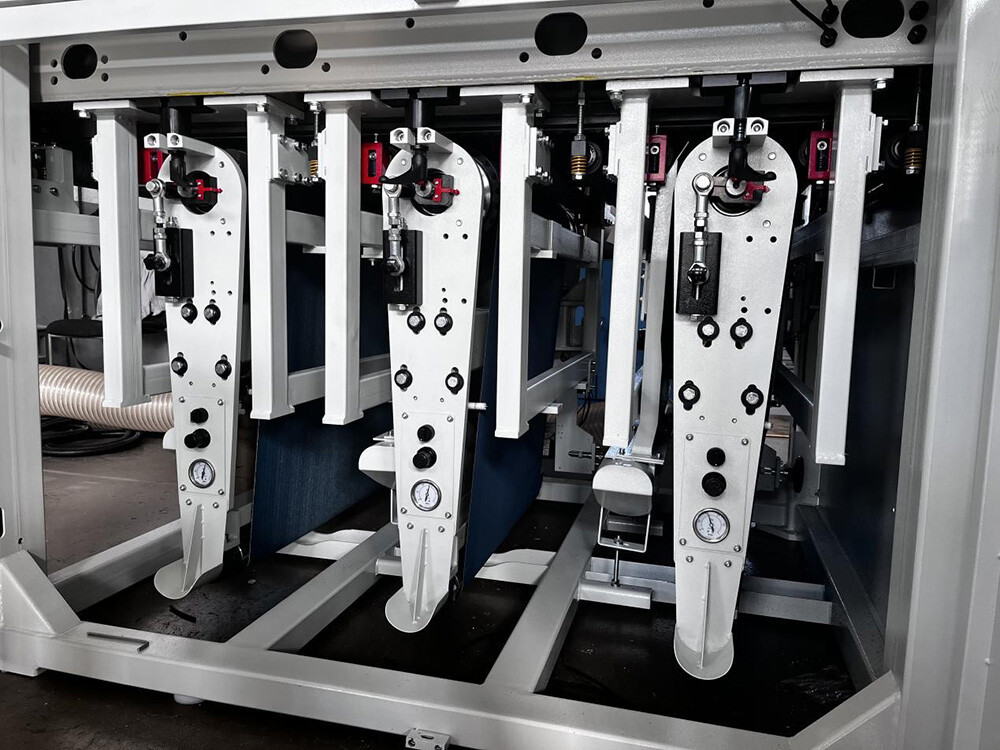

WTU RRR700WTU RR700WTU RRC700WTU RC700 (4)

Technical Parameters

Technical Data	WTU RRR700	WTU RR700	WTU RRC700	WTU RC700
Max Working Width(mm)	700	700	700	700
Min. Working Length(mm)	260	260	390	390
Working Thickness(mm)	10 ～ 150	10 ～ 150	10 ～ 150	10 ～ 150
Total Motor Power(kw)	52	26	52	26
Feeding Speed(m/min)	5 ～ 19	5 ～ 19	5 ～ 19	5 ～ 19
Abrasive Belt Size(mm)	730×1900	730×1900	730×1900	730×1900
Overall Dimensions(mm)	1470×2450×2450	1470×2000×2450	1470×2450×2450	1470×2000×2450
Net Weight(kg)	2800	2000	2800	2000

For more configuration structure information,Please send email to webmaster: webmaster@motimac.com
