BSG 2213X/2113X

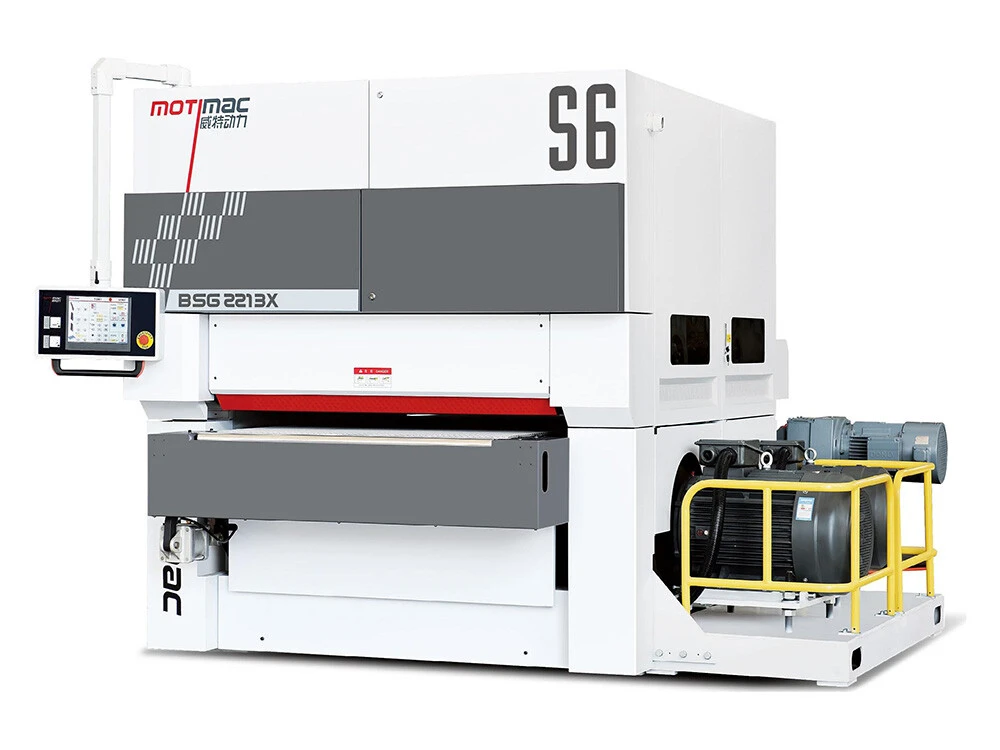

Name: BSG 2213X/2113X
SKU: 0

Specialized machine for sanding artificial boards, super heavy- duty body, powerful thicknessing, full rigidity, stable and reliable

Highlights

◆ Up to 13 technical software and hardware upgrades, machine value is highly increased.

◆ Its user-friendly design ensures operator safety, and all main motors are Siemens motors.

More videos

Specification

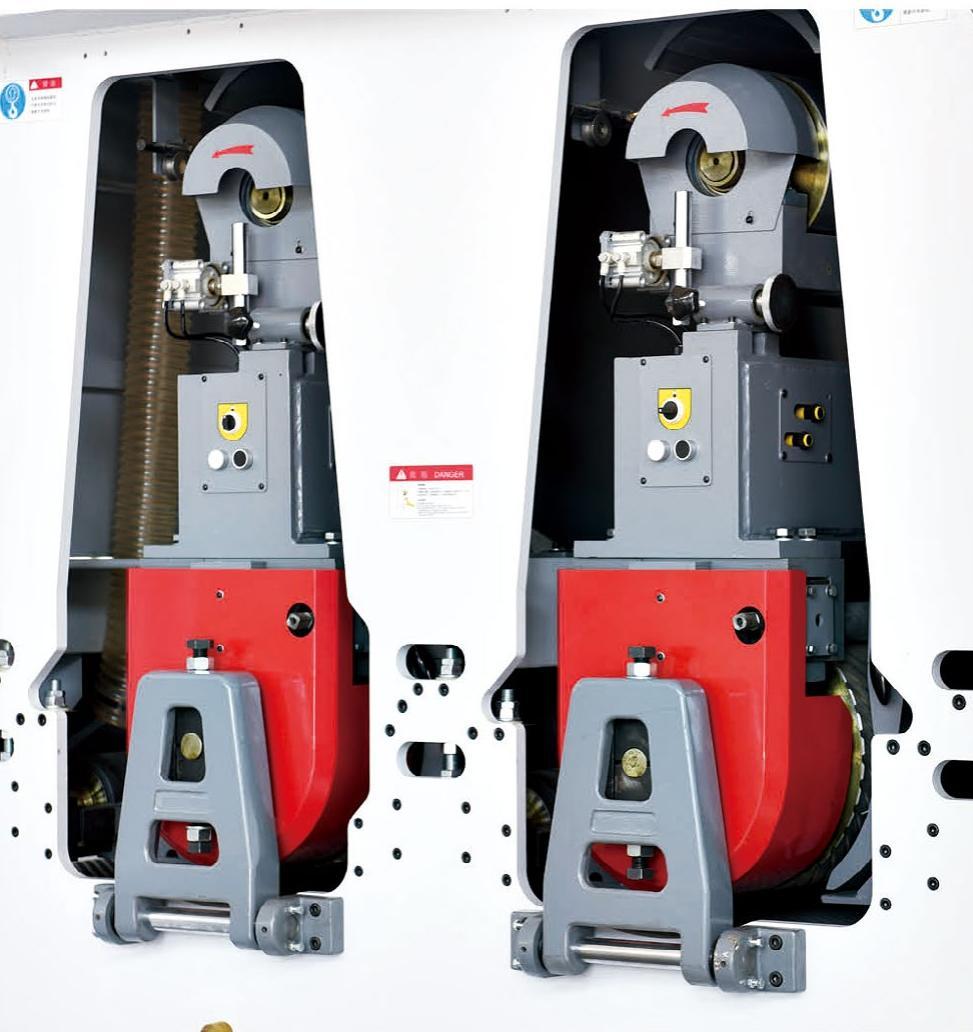

All ABB Electrical parts are adopted ensures enduring and steady service life. Automatic belt high-pressure cleaning device, so that the service life of the belt increased by 35%. Reduce the production cost of the enterprise.	The steel roller with 400mm diameter the body frame thickness is 35 mm. The sleeve adopts the technical structure of Taiwan.

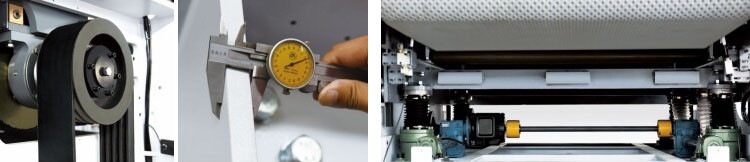

Transportation bed The equipment runs according to standard man-hour, does not need to maintain within 5 years. Four-roll synchronous power feeding, solved the running deviation problem of conveyor belt thoroughly.	Drive system: turbine drive, four-station synchronous lifting system, no gap synchronous operation. The machining precision of sheet metal is improved to ±0.04mm.

Motor-Siemens brand big power motors	Conveyor Belt automatic centering The system eliminates side slip and wear on the sides of the conveyor, significantly increasing the life of the rubber belt.

Configuration

Technical Parameters

Parameter	BSG2213X	BSG2113X
Max Working Width(mm)	1300	1300
Min. Working Length(mm)	856	856
Working Thickness(mm)	3 ～ 100	3 ～ 100
Total Motor Power(kw)	143	85
Feeding Speed(m/min)	10 ～ 65	10 ～ 65
Abrasive Belt Size(mm)	1350×2800	1350×2800
Working air pressure(Mpa)	0.6	0.6
Air consumption(m3/h)	≥ 17	≥ 15
Volume of Dust Collection Device(m3/h)	17640	12300
Overall Dimensions(mm)	3200×3070×2470	3185×2315×2470
Net Weight(kg)	10800	7400

For more configuration structure information,Please send email to webmaster: webmaster@motimac.com
