MG RDR1300
Surface brushing of various materials
Various types of surface finishing

Product Overview

The processing of metal is incredibly meticulous involving various steps, from cutting and rolling to annealing. You also have various metal finishing techniques to choose from, each suited to different applications. We explore the different metal finishes to help you select the ideal type for your project.

Unique Product Advantages

MG RDR1300 (1).jpg

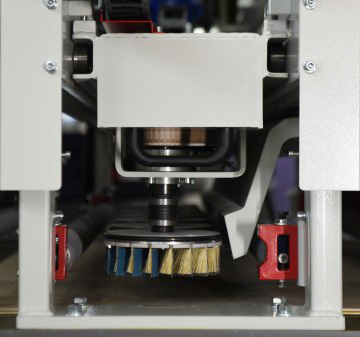

The disc chamfering system is specifically designed for sheet metal and thick carbon steel sheets after laser cutting. Through the unique mechanism of 360° rotation combined with reciprocating movement, it can effectively remove the burrs on the edges and achieve uniform rounding. It can create a uniform R angle of 0.3-0.5mm, making the edges smooth and rounded, eliminating the risk of getting pricked, and enhancing the product quality.

MG RDR1300 (2).jpg

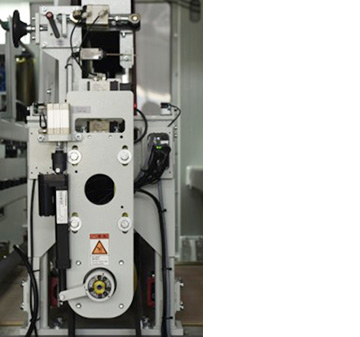

Deburring Unit: Replacing the traditional mode that relies on manual experience and physical labor, the roller height is adjusted by digital control system, with a displacement accuracy of up to 0.01mm, enabling precise and efficient deburring. In addition, the sand roller is equipped with an automatic protection mechanism. Through real-time data monitoring, it can effectively prevent the occurrence of sand grooves on the sheet parts and avoid damage to the machine, providing a dual guarantee for the processing quality and equipment safety.

MG RDR1300 (3).jpg

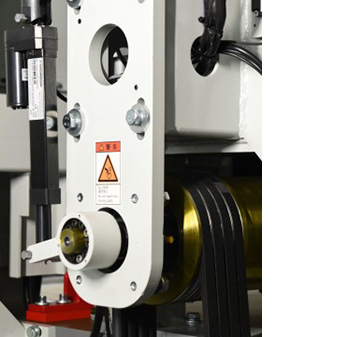

The deburring spindle adopts a precisely optimized design and innovatively features an integrated structure of the pulley and the roller, which greatly improves the torque output of the roller. Relying on the high-precision manufacturing process, its dynamic balance is controlled within ±2g, significantly reducing the wear loss of the equipment and extending its service life. Also, the spindle is equipped with maintenance-free FAG bearings from Germany. With their excellent durability and stability, these bearings provide a a reliable protection for the efficient operation of the equipment.

MG RDR1300 (4).jpg

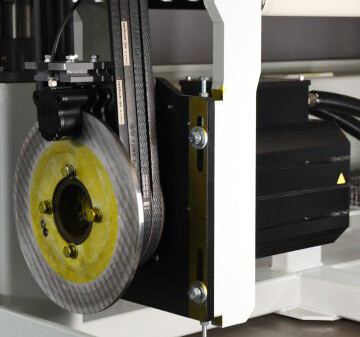

The main deburring motors are servo motors, which have the characteristic of constant torque. It can achieve a constant force output during the deburring process. This not only effectively ensures the accuracy of the machine, but also saves 20% of energy, significantly reducing the production cost and improving the production efficiency.

MG RDR1300 (5).jpg

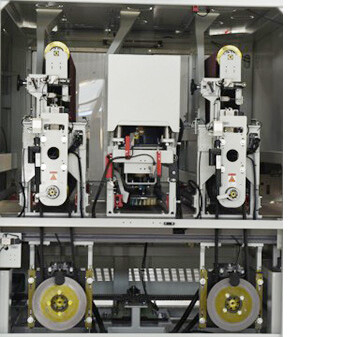

The RDR grinding system adopts an innovative design, integrating the functions of deburring and edge rounding. It can simultaneously improve the surface roughness of workpieces and create a short wire effect with uniform texture. Through the collaborative operation of multiple processes, this system provides high-standard quality for the surface of products.

MG RDR1300 (6).jpg

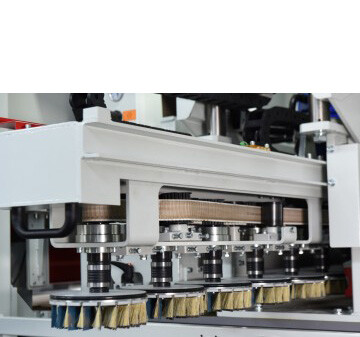

The disc edge rounding unit adopts a pullable modular structure, equipped with a quick-plug replacement interface, simplifying the traditionally cumbersome disc replacement process into "pulling out - inserting". This user-friendly design makes the operation more convenient and faster, effectively reducing the downtime, and providing a solid guarantee for efficient and continuous production.

Technical Parameters

ModelWorking width (mm)Working thickness (mm)Total Power(KW)(With vacuum)Total Power (KW)(Magnetic)Dimensions (mm)Total weight
MG RDR13001300mm0.5~150mm54kW392220x3240x2470~2620mm4900kg
