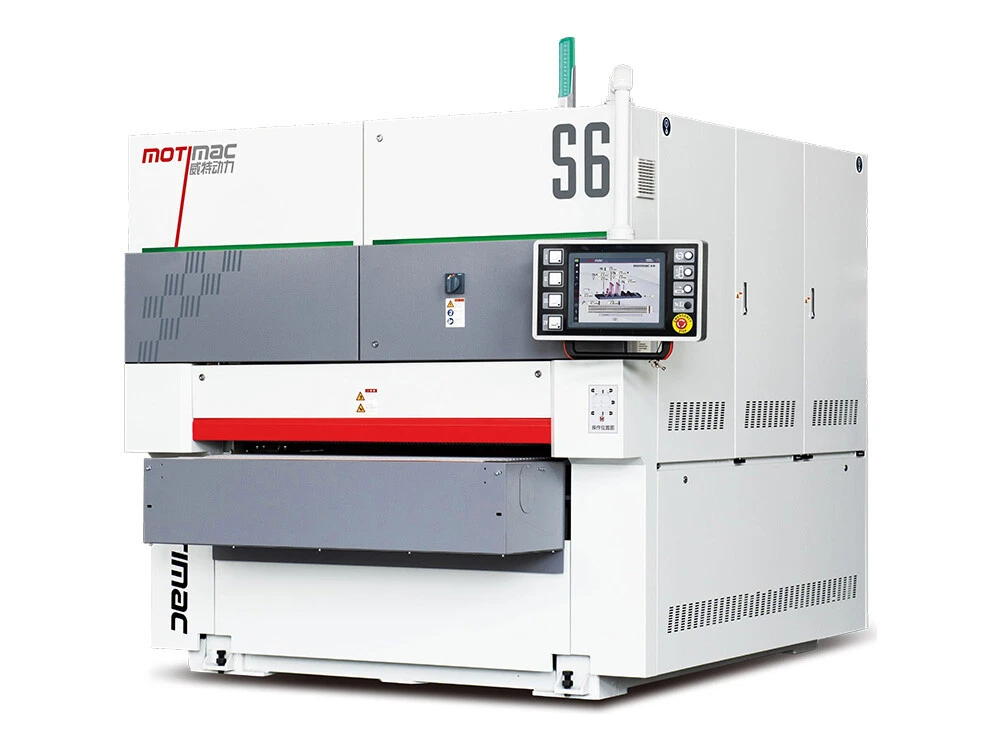

WTTRHG1300/WTTHHG1300/WT RRHG1300

Name: WTTRHG1300/WTTHHG1300/WT RRHG1300
SKU: 0

80-section electronic segmented sanding system
Better adaptability to the shape of the board: The smaller single-section width allows the sections to better fit the board surface. Whether it is a flat board or with a certain curvature or warping, it fully contact the sanding surface to ensure uniform sanding and avoid partial under-sanding or over-sanding.
Reduce sanding blind area: The 16mm single-section width effectively reduce the gap between adjacent sections, making the sanding area more coherent, reducing the possibility of blind areas during the sanding process, and perform comprehensive and complete sanding treatment on the board.

Highlights

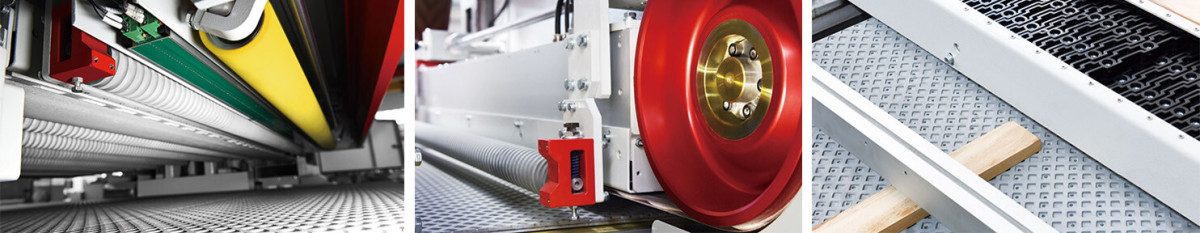

◆ Automatic sanding belt centering technology has strong adaptability to belts, and the belt oscillates at a low frequency, so that the sanding finishing forms a straight grain effect which is clear and natural.

◆ The ultra-wide polishing pad design structure increases the area of the sanding belt contacting the board surface by more than 3 times per unit time compared to shorter belt, making the board surface smoother.

◆ The use of ultra-wide, tensile-resistant and wear-resistant conveyor belts is conducive to releasing the uneven stress on the edge of the conveyor belt. Improve sanding effect by 2%.

◆ The automatic lifting technology of the sand roller quickly lift the sand roller in abnormal situations to protect the workpiece and the sand roller, reduce the phenomenon of over sanding the head and tail of the workpiece, and improve the qualified rate of finished products.

◆ The sanding belt's 20% longer circumference reduces belt change frequency and downtime, which saves 30% of the wasted working hours. The unified belt size across all models also lowers procurement and inventory costs.

◆ The innovative sand belt cleaning system automatically cleans the sand belt in operation, and uses the air cooling to cool the sand belt, and increases the service life of the sand belt by 33%.

More videos

Specification

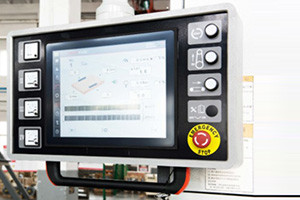

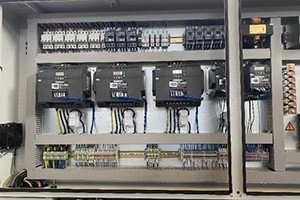

Segmented pad 80 sections, each ssection width 16mm. Smaller pad , more accuracy.	Computer control system Imported from Italy，detecting the position of the board to determine the key drop time, formula management, and can store unlimited sanding modes.	Standard with Siemens/ABB electrical appliances. Reduce equipment operation and maintenance costs.

Digital intelligent scanning technology, with more than 400 scanning points, can accurately collect the cross-sectional contour of the workpiece.	Cleaning brush roller to clean the conveyor belt. The brush roller is drive with power, which is efficiency.	Rotative air blower at the end to clean the panel, and the next process can be directly carried out without any cleaning process.

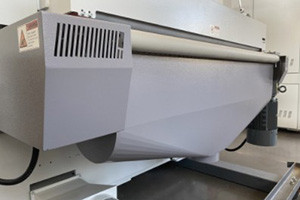

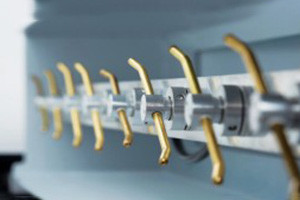

Air jet cleaning Cool and clean the sandpaper, extending the service life and making better performance.	Dust hood to reduce dust dispersion	Sandpaper length 1350*2620mm

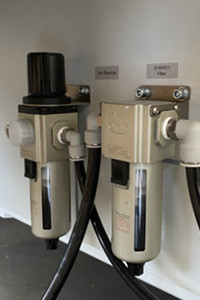

Adjust the graphite pad up and down Easy to operate and visualize	Pneumatic system AirTAC brand Stable, reliable, low maintenance cost	German brand FAG bearing 5 years free maintenance

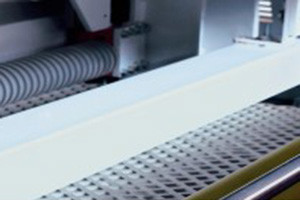

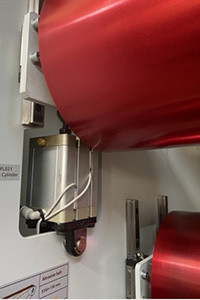

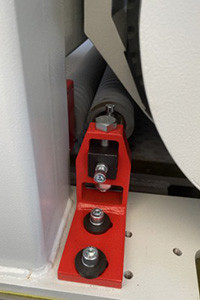

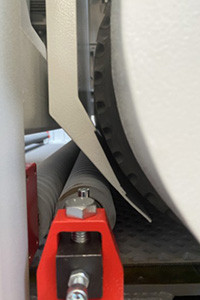

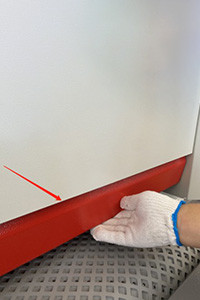

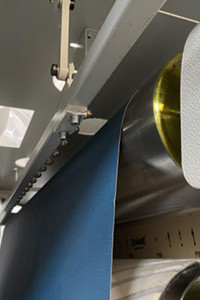

Press roller When the board passes through, rectangular spring, easy to adjust.	If man hand entry, the machine will automatically shut down.	Tension cylinder + limit switch It is with belt breakage protection function.

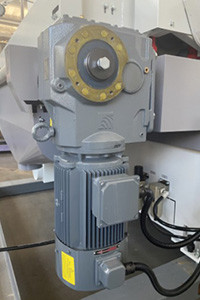

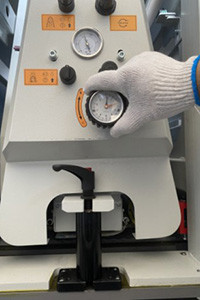

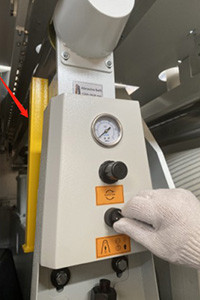

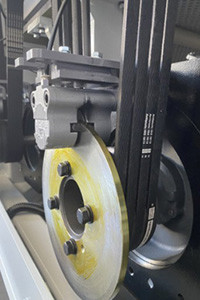

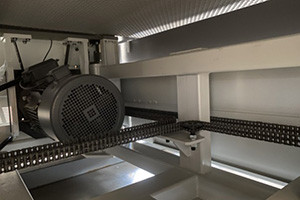

Adjustable tension pressure control Pressure can be adjusted according to different materials.	Brake: can stop within 4 seconds.	Helical gear reducer, has the highest transmission efficiency and improves transmission torque.

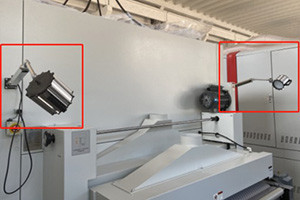

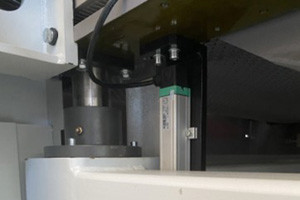

Inspection lamp, user-friendly design	The lifting system adopts full closed-loop positioning system. It is 25 times that of ordinary threaded screw, display accuracy of 0.01mm.	Double-row chains from Military manufacturer. Safe and stable.

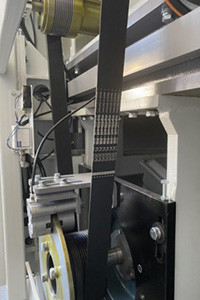

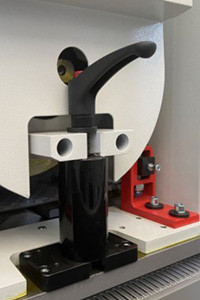

German Optibelt brand Poly V-belt Compared with traditional V-belts, the transmission is more precise and the effect is higher.	The locking handle uses German brand It is stable and not easy to slip.

Configuration

Technical Parameters

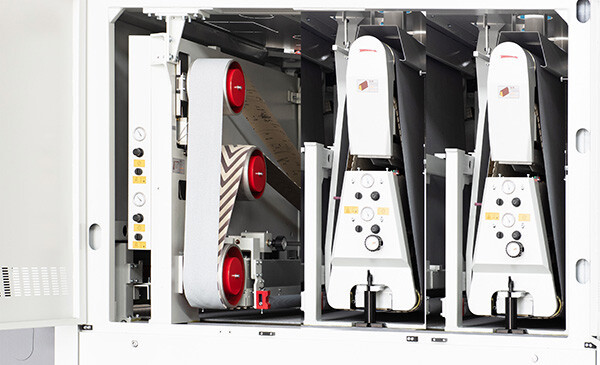

Technical Data	WT TRHG1300	WT THHG1300	WT RRHG1300
Max working length(mm)	1300	1300	1300
Min. working length(mm)	490	490	490
Working thickness(mm)	3 ～ 150	3 ～ 150	3~150
Feeding Speed(m/min)	5 ～ 26	5 ～ 26	5~26
Total Power(kw)	59	59	62
Belt size(mm)	150×5320 1350x2620 1350×2620	150×5320 1350x2620 1350×2620	1350x2620 1350x2620 1350x2620
Overall Dimensions(mm)	2235×3600×2450~2600	2235×3600×2450~2600	2235× 3610× 2450～2600
Net Weight(kg)	6300	6300	6600

For more configuration structure information,Please send email to webmaster: webmaster@motimac.com
