FH1300N/FD1300N/FR1300N

FH1300N/FD1300N/FR1300N

With versatile configurations, high quality and efficiency, it serves as an ideal solution for replacing manual labor in the field of special-shaped brushing.

Highlights

◆ Realize  unmanned  production  supporting equipment.

◆ The flexible sanding system can operate as a separate machine or be integrated into a line system operation, fully realizing 2.5D sanding

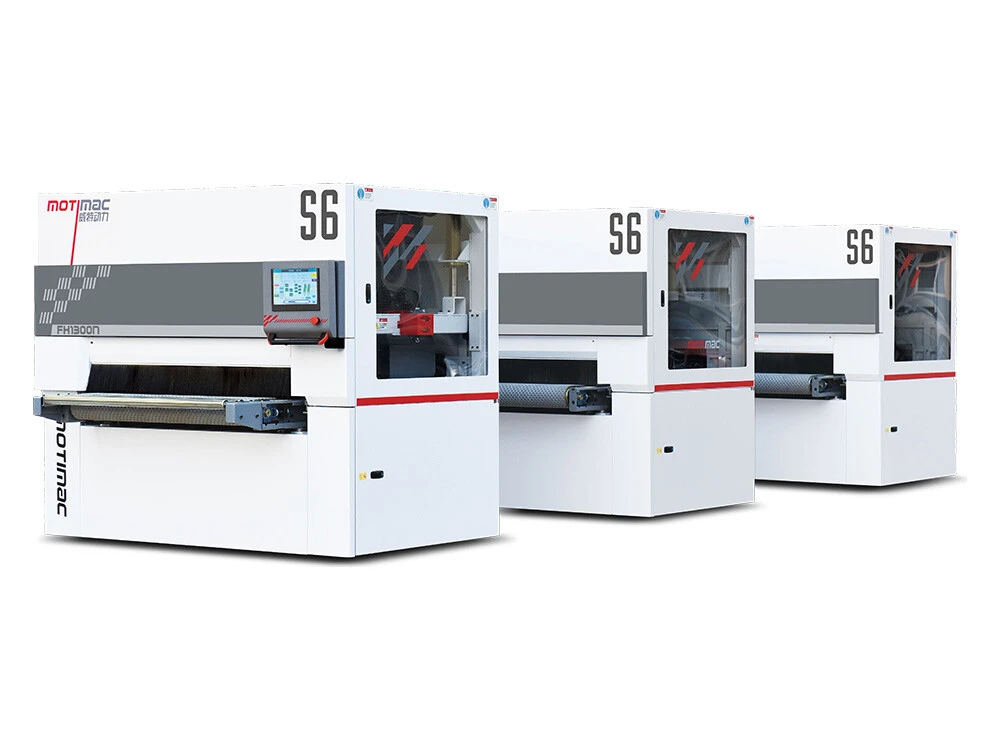

FH1300N-FD1300N-FR1300N


More videos



Specification

FH1300N (2)

FH1300N (1)

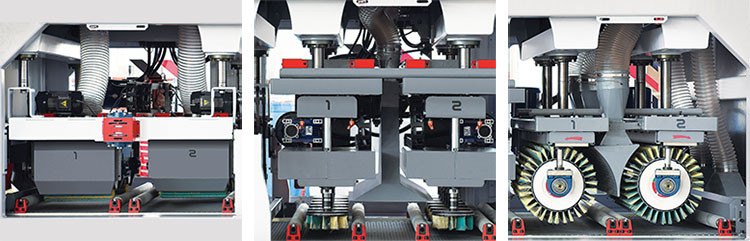

The horizontal roller unit (two groups)

The unit rotates independently and moves laterally left and right at the same time.


Danish brushes (imported from Flex Trim)

Two rows total 2+2 brush rollers.


FD1300N (2)

FD1300N (1)

MME control syst

15-inch touch screen, one-click parameter switching, fault warning,

consumable replacement prompts, and clear partitions to reduce

the risk of misoperation.


MCS Cleaning System

The dust removal system optimized by professional

calculation and CAE analysis ensures more than

99% efficient dust removal.


FR1300N (2)

FR1300N (1)

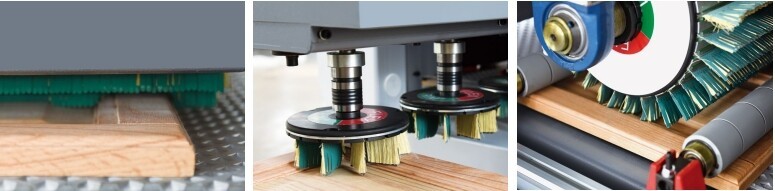

The brush roller sanding unit (two groups)

The spiral sand rollers rotate in opposite directions.



Danish brushes (imported from Flex Trim)

Two sanding rollers separate controlled by motor.




Configuration

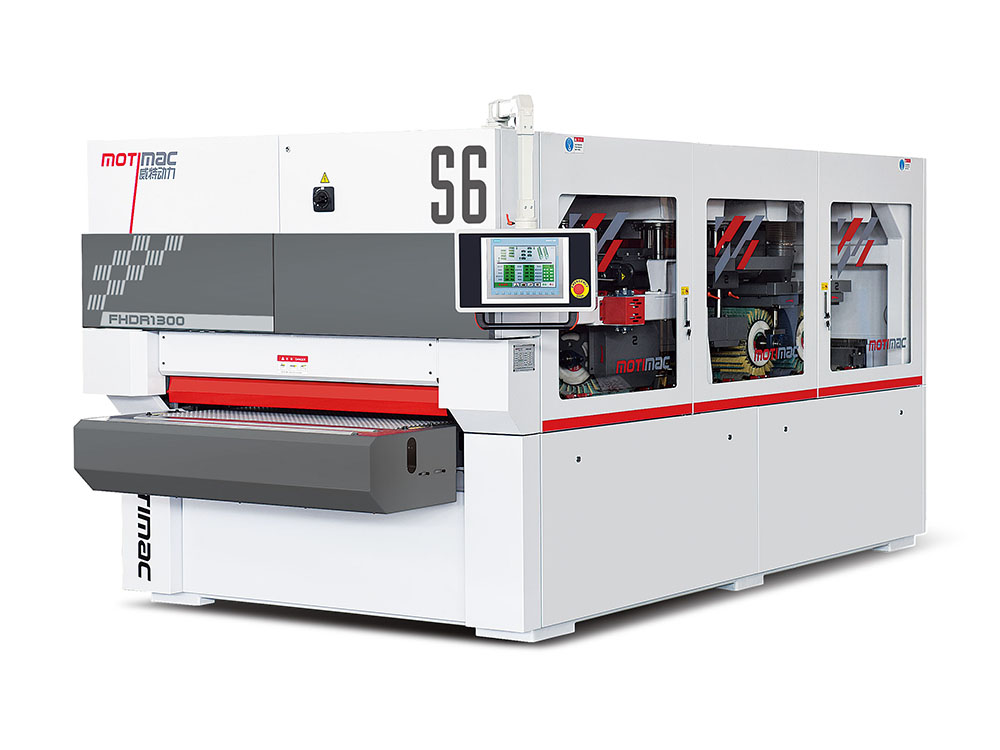

Brush Sander

Technical Parameters

Parameter

FH1300N

FD1300N

FR1300N

Max Working Width(mm)

1300

1300

1300

Min. Working Length(mm)

460

260

380

Working Thickness(mm)

3 ~ 160

3 ~ 160

3 ~ 160

Total Motor Power(kw)

9

6

6

Motor Power of Vacuum Fan(kw)

3.7

Optional 3.7

Optional 3.7

Feeding Speed(m/min)

3 ~ 22

3 ~ 22

3 ~ 22

Volume of Dust Collection Device(m3/h)

6100

8800

8800

Overall Dimensions(mm)

2250×1930×2100

2250×1930×2100

2250×1930×2100

Net Weight(kg)

2100

2000

1900

For more configuration structure information,Please send email to webmaster: webmaster@motimac.com
